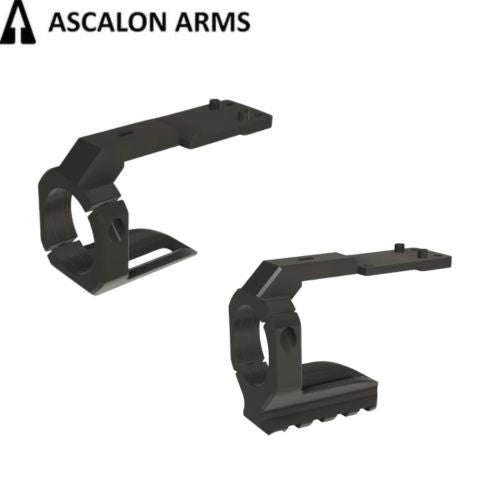

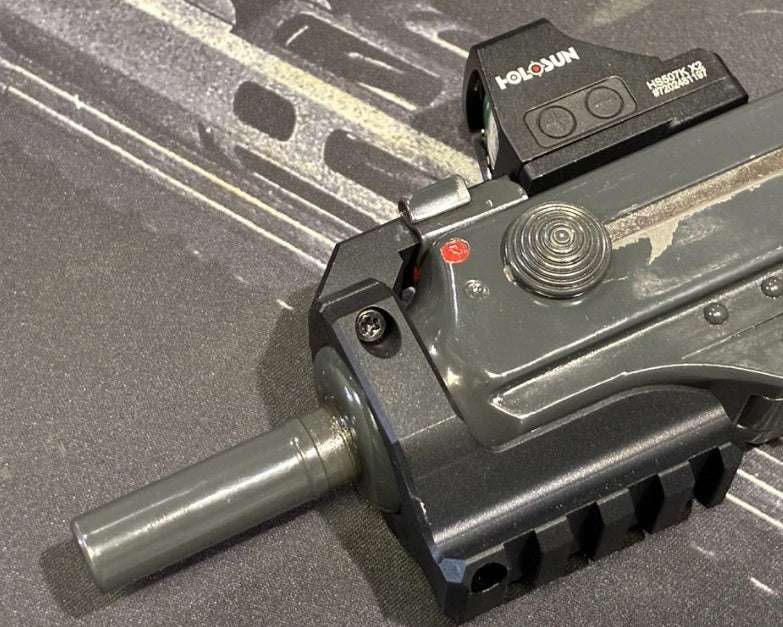

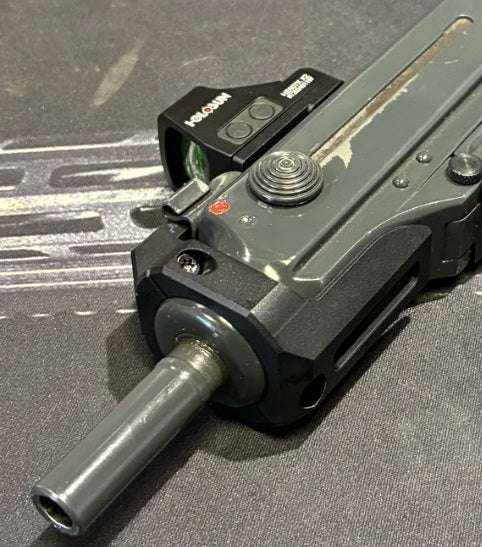

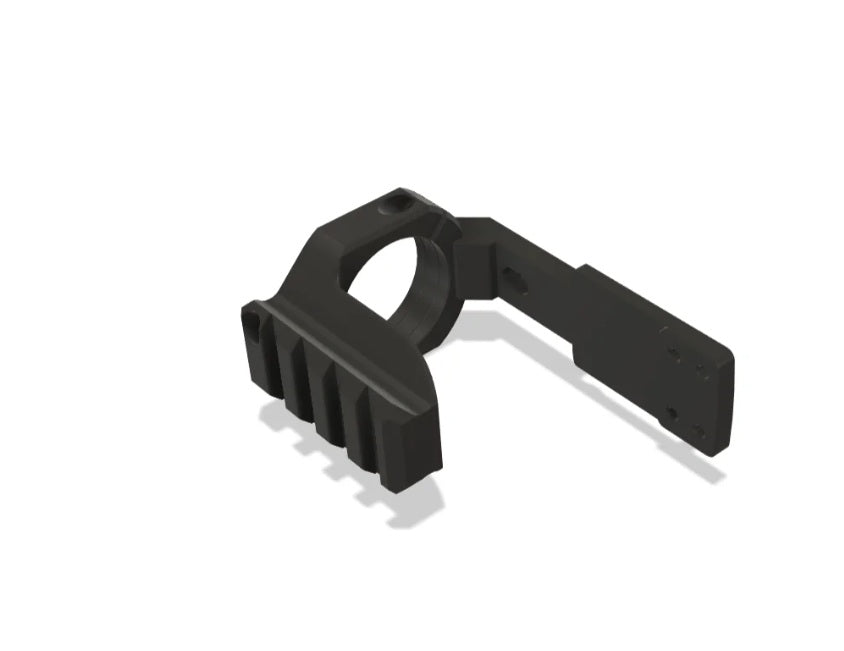

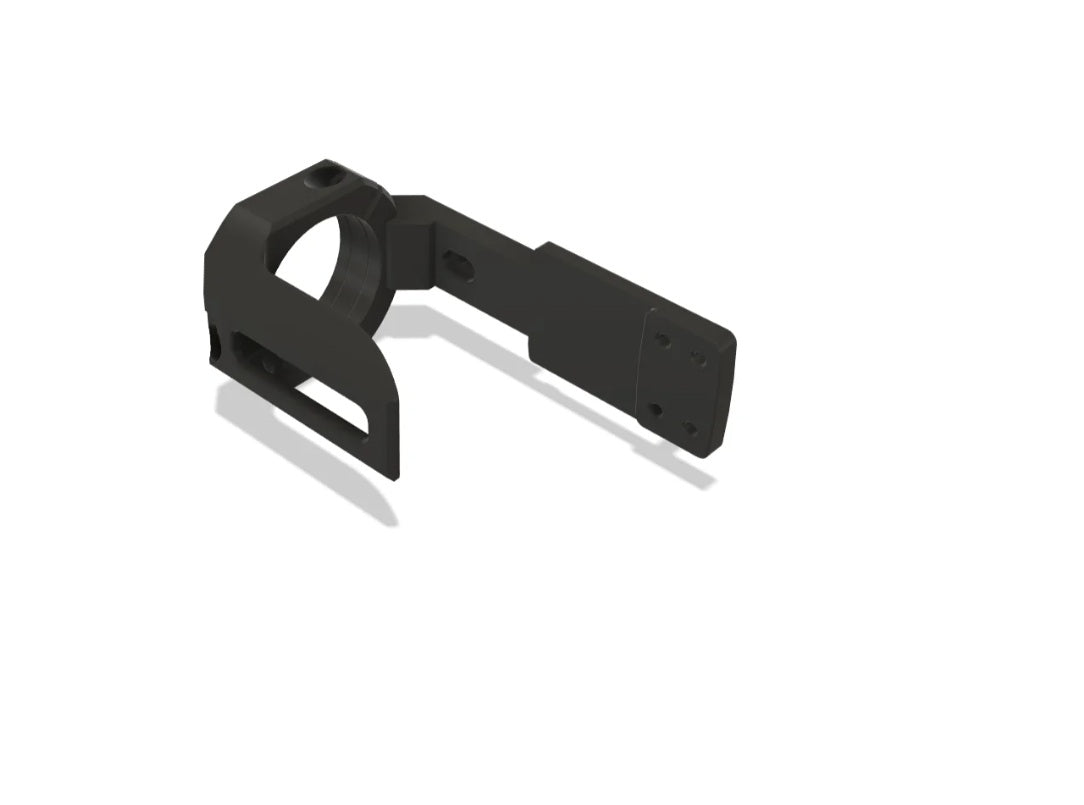

Vz 61 Skorpion red dot mount with Picatinny / M-Lok | Holosun K-series footprint

Red dot mount for the vz. 61 Skorpion with your choice of Picatinny or M-Lok mounting interface underneath – select the type you need.

Allows mounting red dots with the Holosun K-series footprint. Full compatibility list is below.

Does not interfere with the original silencer. The original stock can be fully folded with the mount installed after a slight adjustment – either bend the stock wire or lightly grind the hole.

*Minor modification may be necessary to fully fold the original stock*

Machined from aircraft-grade aluminium in the Czech Republic by Ascalon.

The package contains the complete red dot mount (disassembled into two parts) and installation screws:

• 2x M3x8 low head screws
• 2x M3x8 countersunk head screws
• 2x M3x4 screws

*We recommend using green Loctite to secure the screws.

**When installing, tighten the M3x4 screws only enough to just lightly touch the slide housing. They are there primarily to limit vibrations – overtightening them would damage the mount and may push the red dot out of its adjustment range.

This mount is compatible with the following models:

Compatibility with optics [best sellers]

This mount is compatible with the following popular optics:

You can find full list of compatible optics below.

This mount is compatible with the following red dots:

Installation of red dot mount can be done by yourself with basic manual skills and usual tools.

If you are not sure whether the product will fit your gun, or have any other questions, just drop us an email. We will check the compatibility and get back to you within 24 hours.
